Water Specific Heat Capacity Chart

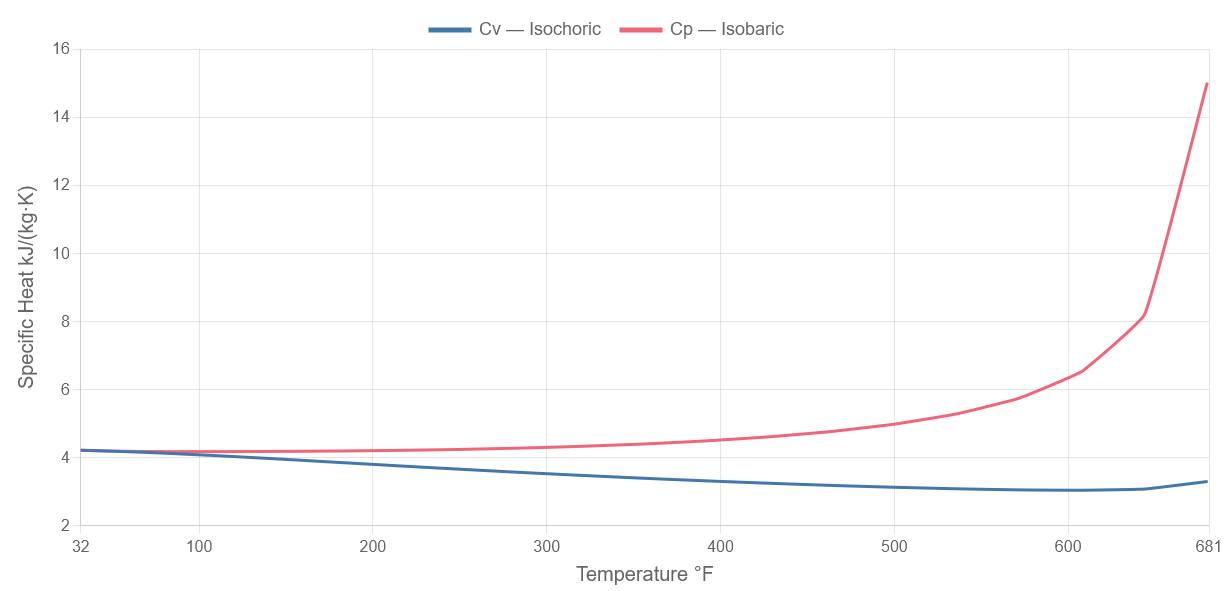

Water Specific Heat Capacity vs Temperature Graph

Canvas Element Not Working, Please Check Browser Settings or Contact KasperCalc to fix the issue.

At saturation pressure (equivalent to atmospheric pressure below 100 °C / 212 °F)

Toggle data sets by clicking the legend.

Water Specific Heat Capacity Calculator
°F:
Isochoric Specific Heat (Cv):
Cv [J/(mol·K)]:
Cv [kJ/(kg·K)]:
Cv [kWh/(kg·K)]:
Cv [kcal/(kg·K)] = Btu(IT)/(lbm·°F):
Isobaric Specific Heat (Cp):
Cp [J/(mol·K)]:
Cp [kJ/(kg·K)]:
Cp [kWh/(kg·K)]:
Cp [kcal/(kg·K)] = Btu(IT)/(lbm·°F):

Valid range: 0.01–360 °C  |  32–680 °F  |  273–633 K  |  492–1140 °R

Specific Heat Capacity of Water
What Is Specific Heat Capacity?

Specific heat capacity (C) is the amount of heat required to raise the temperature of a unit mass by one degree. For water it is measured in kJ/(kg·K) [SI] or Btu/(lbm·°F) [Imperial], and governs sizing of heat exchangers, heaters, and cooling systems. The heat transfer equation is:

Q = ṁ × C × ΔT

where Q is heat flow (W or BTU/hr), is mass flow rate, and ΔT is the temperature difference across the heat exchanger or system boundary.

Isochoric (Cv) vs. Isobaric (Cp)

Isochoric specific heat (Cv) applies to a constant-volume closed system. All added heat goes into raising the internal energy of the fluid with no work done on the surroundings.

Isobaric specific heat (Cp) applies to a constant-pressure open system. Added heat raises internal energy and also does expansion work, so Cp > Cv. For practical liquid-water engineering — open pipes, heat exchangers, and boilers below saturation — Cp is the correct value to use.

Both values vary with temperature. Cp reaches a minimum near 35–40 °C and rises steeply above 280 °C as water approaches the critical point (374 °C). When calculating mass and volume flow in water heating systems at elevated temperatures, specific heat should be corrected for temperature using the table above.

Note: All tabulated values are at saturation pressure. Above 100 °C this exceeds atmospheric pressure, but gives the same result as atmospheric for practical calculations below 100 °C.

Water — Specific Heat vs. Temperature (°C)
Temperature
(°C)
Isochoric Specific Heat (Cv) Isobaric Specific Heat (Cp)
J/(mol·K) kJ/(kg·K) kWh/(kg·K) kcal/(kg·K)
Btu(IT)/(lbm·°F)
J/(mol·K) kJ/(kg·K) kWh/(kg·K) kcal/(kg·K)
Btu(IT)/(lbm·°F)
0.0175.9814.21740.0011721.007376.0264.21990.0011721.0079
1075.5054.19100.0011641.001075.5864.19550.0011651.0021
2074.8934.15700.0011550.992975.3864.18440.0011620.9994
2574.5484.13790.0011490.988375.3364.18160.0011620.9988
3074.1814.11750.0011440.983475.3094.18010.0011610.9984
4073.3924.07370.0011320.973075.3004.17960.0011610.9983
5072.5404.02640.0011180.961775.3344.18150.0011620.9987
6071.6443.97670.0011050.949875.3994.18510.0011630.9996
7070.7163.92520.0010900.937575.4914.19020.0011641.0008
8069.7743.87290.0010760.925075.6114.19690.0011661.0024
9068.8283.82040.0010610.912575.7634.20530.0011681.0044
10067.8883.76820.0010470.900075.9504.21570.0011711.0069
11066.9603.71670.0010320.887776.1774.22830.0011751.0099
12066.0503.66620.0010180.875776.4514.24350.0011791.0135
14064.3063.56940.0009920.852577.1554.28260.0011901.0229
16062.6743.47880.0009660.830978.1074.33540.0012041.0355
18061.1633.39490.0009430.810979.3604.40500.0012241.0521
20059.7753.31790.0009220.792580.9964.49580.0012491.0738
22058.5143.24790.0009020.775783.1374.61460.0012821.1022
24057.3813.18500.0008850.760785.9714.77190.0013261.1397
26056.3923.13010.0008690.747689.8214.98560.0013851.1908
28055.5783.08490.0008570.736895.2855.28890.0014691.2632
30055.0033.05300.0008480.7292103.605.75040.0015971.3735
32054.8193.04280.0008450.7268117.786.53730.0018161.5614
34055.4553.07810.0008550.7352147.888.20800.0022801.9604
36059.4023.29720.0009160.7875270.3115.0040.0041683.5836

Data at saturation pressure. Below 100 °C this is equivalent to atmospheric pressure for practical purposes.

Water — Specific Heat vs. Temperature (°F)
Temperature
(°F)
Isochoric Specific Heat (Cv) Isobaric Specific Heat (Cp)
Btu(IT)/(kmol·°R) Btu(IT)/(lbm·°F)
kcal/(kg·K)
kJ/(kg·K) Btu(IT)/(kmol·°R) Btu(IT)/(lbm·°F)
kcal/(kg·K)
kJ/(kg·K)
32.240.01.0074.21740.0321.0084.220
4039.91.0054.20839.9161.0054.208
5039.81.0014.19139.8011.0024.196
6039.60.9964.16939.7391.0014.189
8039.20.9864.12839.6600.9994.181
10038.70.9754.08239.6430.9984.179
12038.30.9634.03339.6620.9994.181
14037.70.9503.97739.7021.0004.185
16037.20.9373.92339.7611.0014.191
18036.70.9233.86539.8351.0034.199
20036.10.9093.80539.9271.0054.209
21235.70.9003.76839.9931.0074.216
22035.50.8953.74540.0421.0084.221
24035.00.8803.68640.1861.0124.236
26034.40.8673.62940.3641.0164.255
28033.90.8543.57440.5801.0224.278
30033.40.8413.52240.8381.0284.305
35032.30.8133.40441.6851.0504.394
40031.30.7893.30242.9021.0804.522
45030.40.7673.20944.0091.1084.639
50029.70.7483.13047.2961.1914.986
55028.80.7253.03551.3181.2925.410
60028.30.7132.98759.6901.5036.292
62528.40.7162.99766.6111.6777.022
65028.90.7283.04782.8512.0868.734
67529.90.7543.156126.6703.18913.353

Data at saturation pressure. Above 212 °F all values are at saturation pressure.
