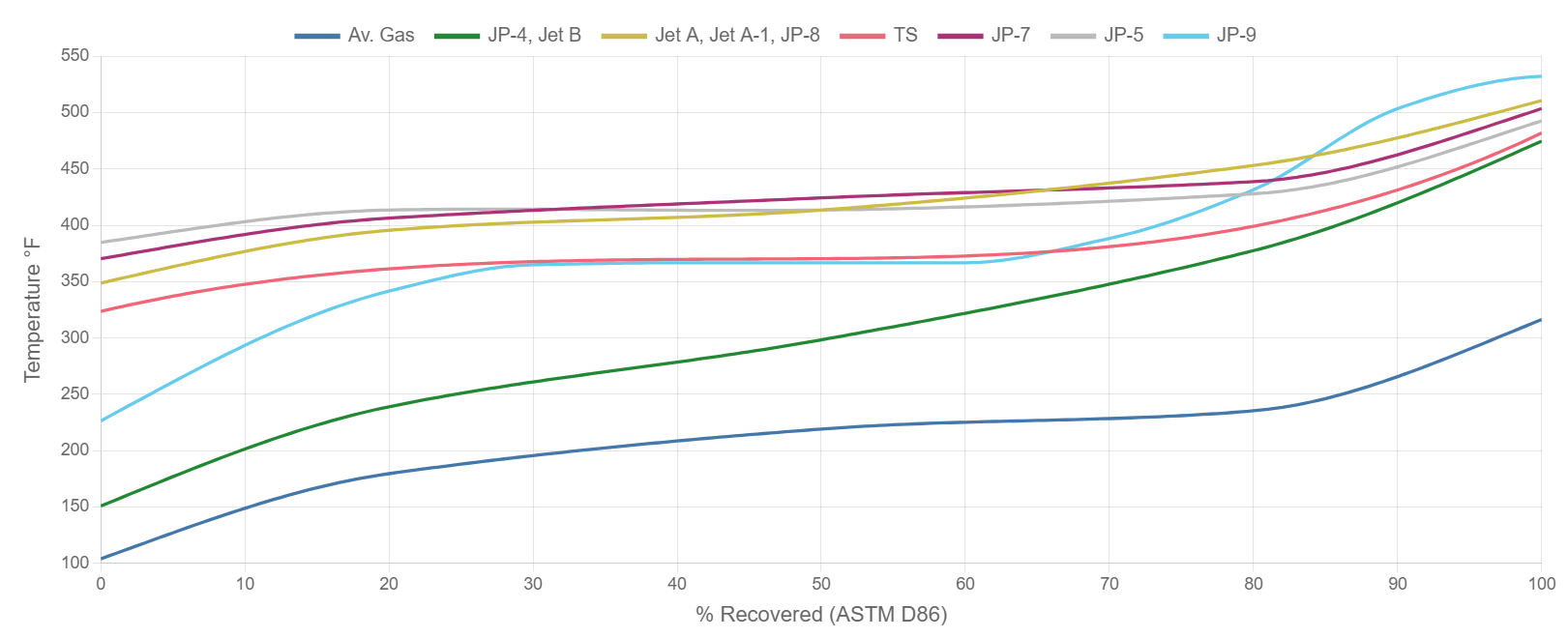

Distillation Curves Chart
.png)
Data from "Coordinating Research Council", CRC 530
Toggle data sets by clicking the legend.
Distillation Curve Calculator
Percent Recovered:
Temperature (°F)
Temperature (°C)
Distillation Temperature by Percent Recovered (ASTM D86, °F)
| % Recovered | Av. Gas | JP-4, Jet B | Jet A, Jet A-1, JP-8 | TS | JP-7 | JP-5 | JP-9 |
|---|---|---|---|---|---|---|---|
| 0 | 104 | 150.8 | 348.8 | 323.6 | 370.4 | 384.8 | 226.4 |
| 10 | 148.87 | 201.46 | 376.86 | 347.67 | 391.94 | 403.28 | 293.44 |
| 20 | 179.6 | 239 | 395.6 | 361.4 | 406.4 | 413.6 | 341.6 |
| 30 | 195.64 | 261 | 402.81 | 367.77 | 413.32 | 414.33 | 365 |
| 40 | 208.62 | 278.63 | 407.08 | 369.77 | 419 | 413.45 | 366.8 |
| 50 | 219.2 | 298.4 | 413.6 | 370.4 | 424.4 | 413.6 | 366.8 |
| 60 | 225.25 | 321.98 | 424.25 | 372.83 | 429.05 | 416.4 | 366.8 |
| 70 | 228.51 | 347.82 | 437.46 | 381.05 | 433.17 | 421.38 | 388.4 |
| 80 | 235.4 | 377.6 | 453.2 | 399.2 | 438.8 | 428 | 431.6 |
| 90 | 265.75 | 420.1 | 477.68 | 431.46 | 462.71 | 451.95 | 503.6 |
| 100 | 316.4 | 474.8 | 510.8 | 482 | 503.6 | 492.8 | 532.4 |
