Propylene Glycol Thermal Expansion Coefficient Calculator by Concentration and Temperature

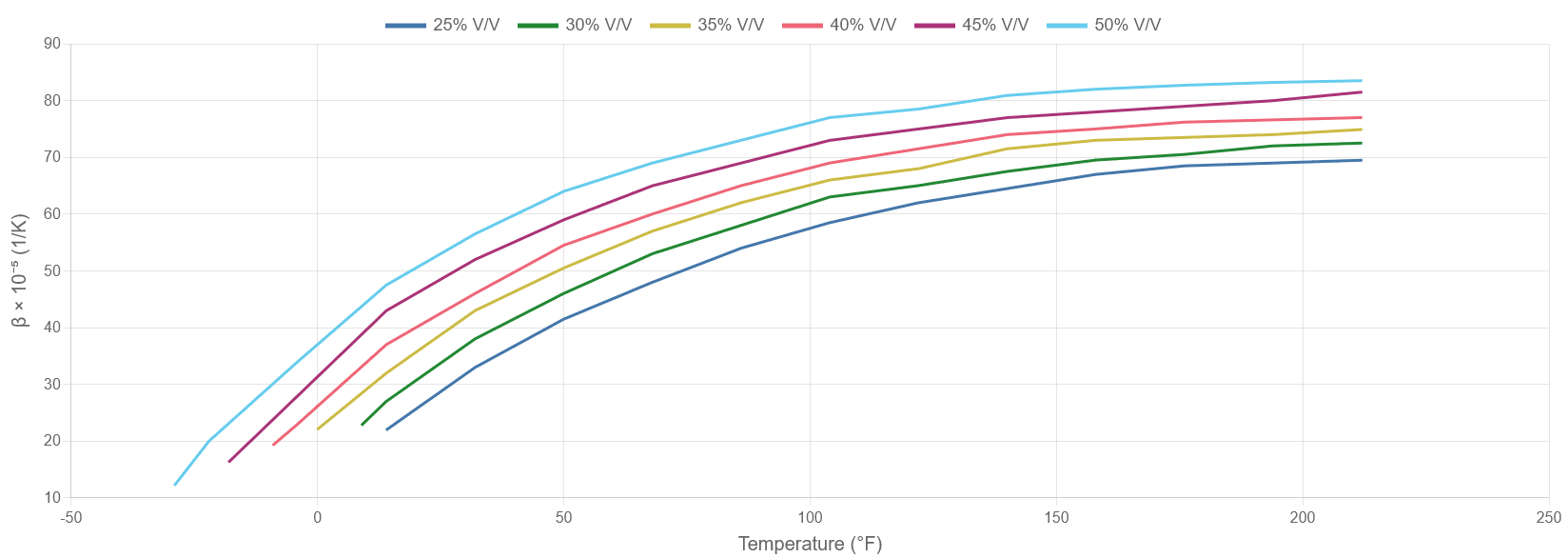

Propylene Glycol Thermal Expansion Coefficient Chart

Canvas Element Not Working, Please Check Browser Settings or Contact KasperCalc to fix the issue.

Data from "Propylene Glycol Industrial Grade", Carpemar 2016

Toggle data sets by clicking the legend.

Propylene Glycol Thermal Expansion Calculator

Enter two temperatures to get % volume and density change.

Initial Temperature (T1)
Value:
Unit:
Final Temperature (T2)
Value:
Unit:
Results
β at T1 (×10⁻⁵ 1/K):
β at T2 (×10⁻⁵ 1/K):
% Volume Change:
% Density Change:
Volume Change Calculator

Enter volume and two temperatures to get new volume.

Known Volume at T1
Volume:
Unit:
T1 Value:
T1 Unit:
Target Temperature (T2)
T2 Value:
T2 Unit:
Volume at T2
US Gallons:
Liters:
ft³:
m³:
in³:
Thermal Expansion Coefficient of Propylene Glycol
What Is the Volumetric Thermal Expansion Coefficient?

The volumetric thermal expansion coefficient (β) describes how much a fluid expands per degree of temperature rise. It is reported here in units of β × 10−5 1/K. The volume change is:

ΔV = V0 × β × ΔT

where V0 is the initial volume and ΔT is the temperature change in Kelvin.

Why It Matters for Closed-Loop Systems

In closed-loop heating and cooling systems, fluid volume changes with temperature must be accommodated by an expansion tank. Undersizing the expansion tank — by using water's expansion coefficient when the system actually contains a propylene glycol solution — can result in system overpressure, relief valve discharge, or pipe damage. Propylene glycol solutions expand more than water at equivalent temperatures, making accurate β values essential for expansion tank sizing calculations.

Note: β increases with both temperature and glycol concentration. Always size expansion tanks using the highest expected operating temperature.
