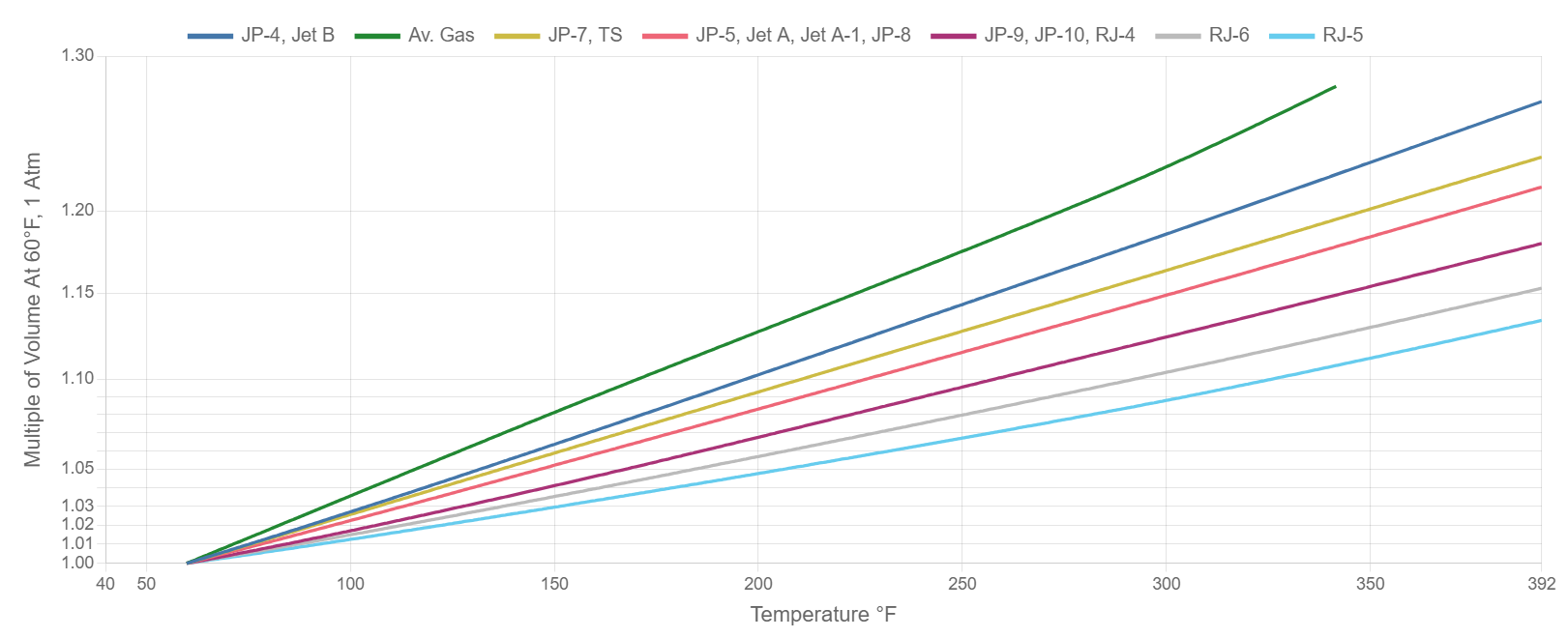

Thermal Expansion Chart
.png)
Data from "Coordinating Research Council", CRC 530
Toggle data sets by clicking the legend.
At 60°F, 1.01kPa x 10² (1 Atm)
Thermal Expansion Calculator
Degrees (°F)
Degrees (°C)
Multiple of Volume:
* At 15.5°C, 1.01kPa x 10² (1 Atm) *
Multiple of Volume by Temperature (Ref. 60°F, 1 Atm)
| Temperature (°F) | JP-4, Jet B | Av. Gas | JP-7, TS | JP-5, Jet A, Jet A-1, JP-8 | JP-9, JP-10, RJ-4 | RJ-6 | RJ-5 |
|---|---|---|---|---|---|---|---|
| 60 | 1.0001 | 1.0001 | 1.0001 | 1.0001 | 1 | 1 | 1 |
| 70 | 1.0065 | 1.0088 | 1.0063 | 1.0055 | 1.004 | 1.0036 | 1.003 |
| 80 | 1.0132 | 1.0176 | 1.0127 | 1.011 | 1.0082 | 1.0073 | 1.0061 |
| 90 | 1.02 | 1.0265 | 1.0191 | 1.0167 | 1.0125 | 1.011 | 1.0092 |
| 100 | 1.027 | 1.0355 | 1.0256 | 1.0224 | 1.017 | 1.0149 | 1.0125 |
| 110 | 1.034 | 1.0445 | 1.0321 | 1.0282 | 1.0216 | 1.0188 | 1.0158 |
| 120 | 1.0413 | 1.0536 | 1.0387 | 1.0341 | 1.0263 | 1.0228 | 1.0191 |
| 130 | 1.0486 | 1.0628 | 1.0453 | 1.04 | 1.0311 | 1.0269 | 1.0225 |
| 140 | 1.056 | 1.072 | 1.052 | 1.046 | 1.036 | 1.031 | 1.026 |
| 150 | 1.0635 | 1.0812 | 1.0587 | 1.0521 | 1.041 | 1.0352 | 1.0295 |
| 160 | 1.0711 | 1.0904 | 1.0655 | 1.0582 | 1.0461 | 1.0394 | 1.033 |
| 170 | 1.0788 | 1.0996 | 1.0722 | 1.0643 | 1.0513 | 1.0437 | 1.0366 |
| 180 | 1.0866 | 1.1088 | 1.079 | 1.0705 | 1.0566 | 1.048 | 1.0402 |
| 190 | 1.0945 | 1.1181 | 1.0859 | 1.0768 | 1.062 | 1.0524 | 1.0439 |
| 200 | 1.1025 | 1.1274 | 1.0927 | 1.0831 | 1.0674 | 1.0568 | 1.0476 |
| 210 | 1.1105 | 1.1367 | 1.0996 | 1.0895 | 1.0729 | 1.0613 | 1.0514 |
| 220 | 1.1186 | 1.1462 | 1.1066 | 1.0959 | 1.0785 | 1.0659 | 1.0552 |
| 230 | 1.1268 | 1.1557 | 1.1136 | 1.1023 | 1.0842 | 1.0705 | 1.059 |
| 240 | 1.135 | 1.1654 | 1.1206 | 1.1088 | 1.0898 | 1.0751 | 1.063 |
| 250 | 1.1433 | 1.1753 | 1.1277 | 1.1154 | 1.0955 | 1.0798 | 1.067 |
| 260 | 1.1517 | 1.1852 | 1.1348 | 1.122 | 1.1012 | 1.0845 | 1.071 |
| 270 | 1.1601 | 1.1954 | 1.1419 | 1.1286 | 1.107 | 1.0893 | 1.0751 |
| 280 | 1.1686 | 1.2058 | 1.1491 | 1.1353 | 1.1127 | 1.0941 | 1.0793 |
| 290 | 1.1771 | 1.2165 | 1.1564 | 1.142 | 1.1185 | 1.0989 | 1.0836 |
| 300 | 1.1858 | 1.2278 | 1.1637 | 1.1489 | 1.1243 | 1.1039 | 1.088 |
| 310 | 1.1945 | 1.2397 | 1.1711 | 1.1558 | 1.1301 | 1.1089 | 1.0925 |
| 320 | 1.2034 | 1.252 | 1.1785 | 1.1627 | 1.136 | 1.114 | 1.0972 |
| 330 | 1.2124 | 1.2648 | 1.1861 | 1.1698 | 1.142 | 1.1192 | 1.1021 |
| 340 | 1.2214 | 1.2779 | 1.1936 | 1.1769 | 1.148 | 1.1245 | 1.107 |
| 350 | 1.2306 | - | 1.2013 | 1.1841 | 1.1541 | 1.1299 | 1.112 |
| 360 | 1.2399 | - | 1.209 | 1.1914 | 1.1602 | 1.1353 | 1.1171 |
| 370 | 1.2492 | - | 1.2168 | 1.1987 | 1.1663 | 1.1408 | 1.1223 |
| 380 | 1.2586 | - | 1.2246 | 1.2061 | 1.1725 | 1.1463 | 1.1276 |
| 390 | 1.2681 | - | 1.2324 | 1.2135 | 1.1787 | 1.1519 | 1.1329 |
