Propylene Glycol Frost Protection Calculator — Burst, Protection, and Freezing Point Temperatures

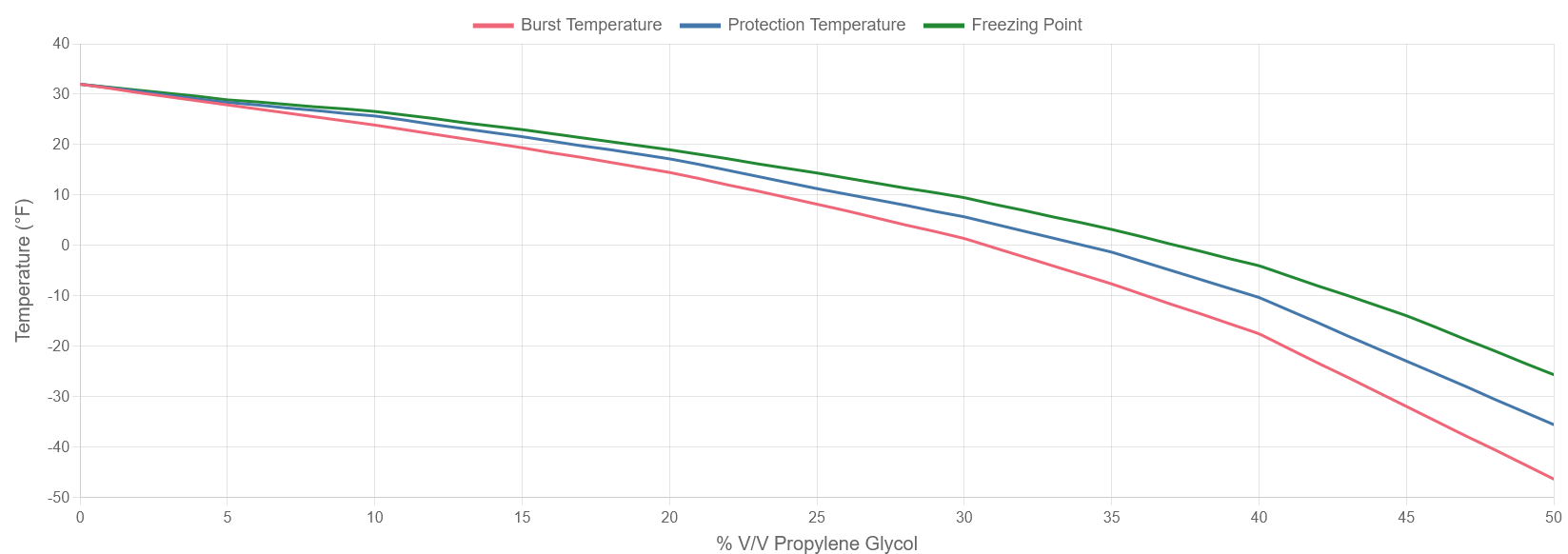

Propylene Glycol Frost Protection Chart

Canvas Element Not Working, Please Check Browser Settings or Contact KasperCalc to fix the issue.

Data from "Propylene Glycol Industrial Grade", Carpemar 2016

Toggle data sets by clicking the legend.


Freezing Point per ASTM D 1177: First ice crystal formation.
Protection Temperature per DIN 51583: Fluid stops flowing, circuit integrity at risk.
Burst Temperature: Limit before pipe/component failure.

Propylene Glycol Frost Protection Calculator
Burst Temperature (°C):
Burst Temperature (°F):
Protection Temperature (°C):
Protection Temperature (°F):
Freezing Point (°C):
Freezing Point (°F):
Frost Protection of Propylene Glycol
Three Temperature Thresholds

Propylene glycol frost protection is defined by three distinct temperatures, each more conservative than the last:

Freezing Point (ASTM D 1177) — the temperature at which the first ice crystals form. Below this point the mixture is a slush of ice and liquid that still flows without expanding, so pipes are not yet at risk.

Protection Temperature (DIN 51583) — the temperature at which the fluid stops flowing and circuit integrity is at risk. This is the threshold engineers use to size freeze protection.

Burst Temperature — the limit below which pipe or component failure from expansion pressure becomes likely.

Selecting the Right Concentration

The protection temperature — not the freezing point — should be used when selecting a glycol concentration for a given design low temperature. For example, a system designed for a minimum ambient of 14 °F (−10 °C) requires approximately 30% V/V propylene glycol to maintain flow. Using the freezing point instead would underestimate the required concentration and leave the system vulnerable.

Note: Higher glycol concentrations reduce heat transfer performance. Avoid over-concentrating beyond what frost protection requires.
